Icom MR1010RII 4kW Marine Radar Color LCD

Description

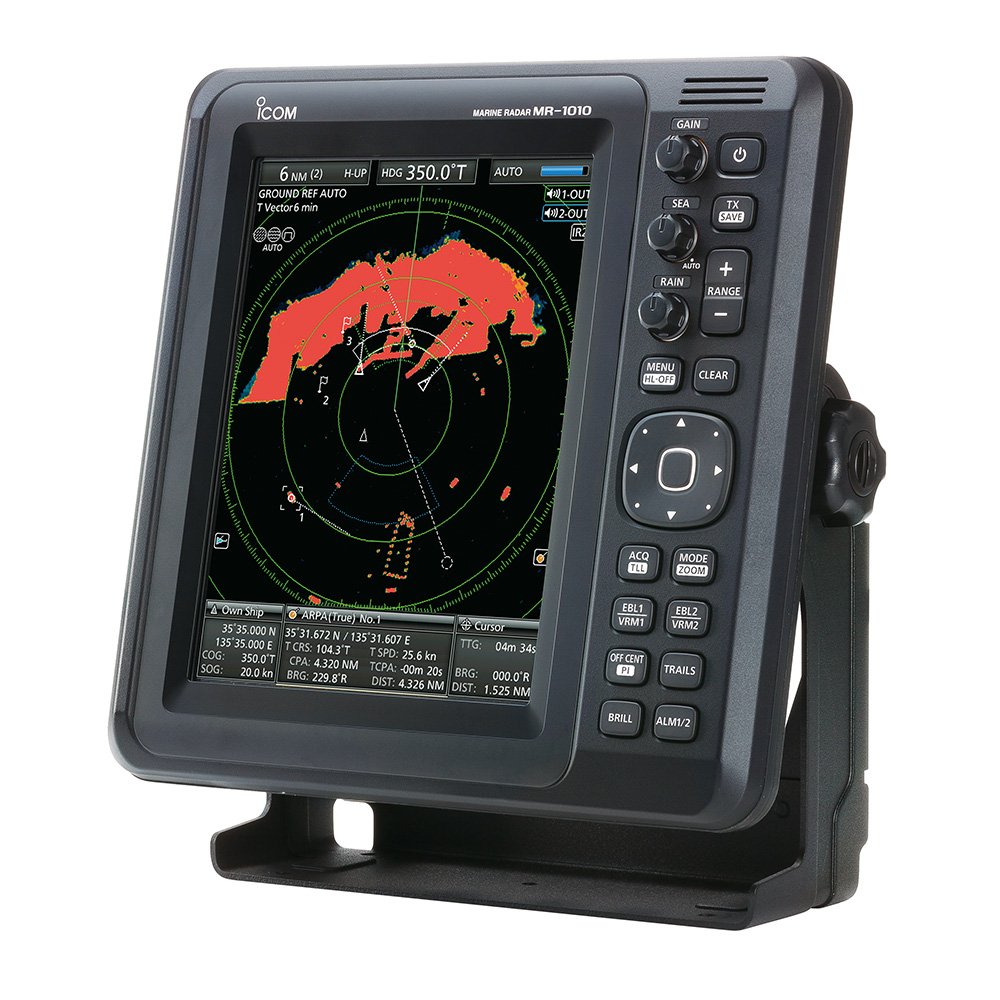

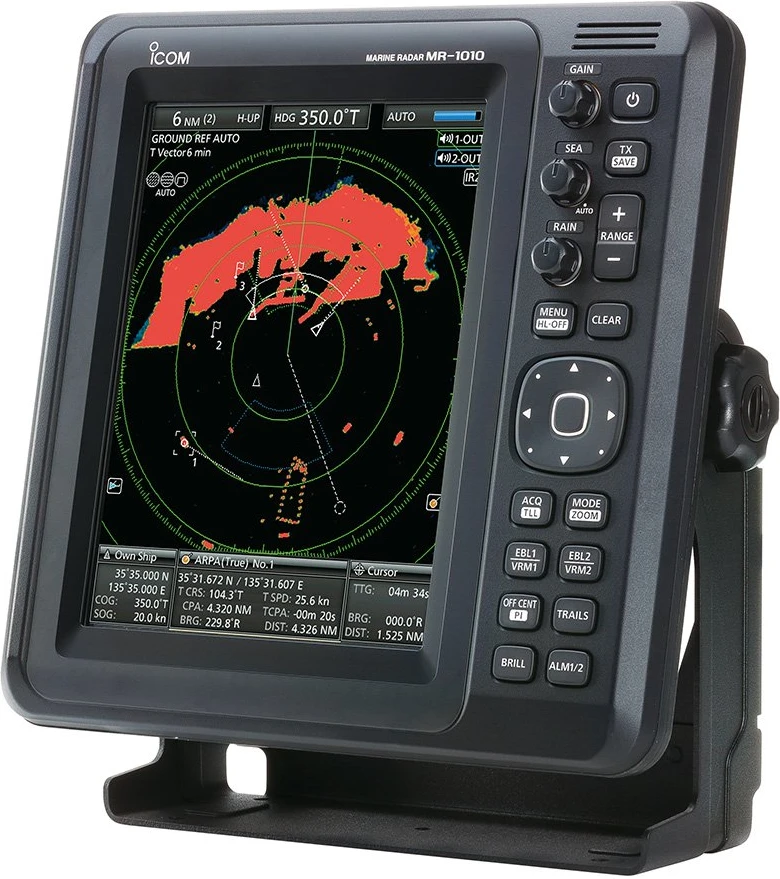

Maintain practical radar awareness from a dedicated 10.4-inch display with the Icom MR-1010RII Marine Radar System. This self-contained package combines a color TFT radar display with a 2-foot enclosed radome, giving boaters an alternative to radar systems that depend on a multifunction display. Want a straightforward radar setup for coastal runs, low-light returns, or fog-prone mornings? The MR-1010RII pairs 4 kW pulse-radar output with a 36 NM instrumented range, ARPA, AIS overlay, true trails, and point-of-interest functions.

Key Specifications

• Icom MR-1010RII standalone marine radar system.
• Includes a 10.4-inch color TFT LCD display and a 2-foot enclosed radar radome.
• 4 kW magnetron pulse-radar output.
• Up to 36 NM instrumented range.
• 4° horizontal beamwidth.
• Supports ARPA tracking for up to 5 targets, AIS overlay, true trails, and Point of Interest functions.
• 10.2V–42V DC operating input.
• IPX4-rated display and IPX6-rated radome.
• Approximate weight: 11 lb for the display and 17.6 lb for the radome.
• Made in Japan with a 2-year manufacturer warranty, subject to local terms.

Integration

The MR-1010RII includes its own radar display, so a separate MFD is not required for basic radar viewing and control. AIS overlay requires a compatible AIS data source and appropriate configuration. ARPA, true trails, heading-up displays, and other navigation-dependent features may require compatible position, heading, or speed inputs.

The 36 NM value is an instrumented radar range and should not be treated as a guaranteed target-detection distance. Performance depends on scanner height, target size and composition, weather, precipitation, sea clutter, nearby structures, antenna alignment, and selected radar settings.

Installation Notes

Mount the radome on a rigid, level platform with a clear 360° scan path and practical height above the waterline. Install the display in a protected helm location where the controls and screen remain accessible. Keep the radome clear of crew areas, masts, antennas, rigging, lights, exhaust, and obstacles that can block or reflect radar energy.

Use correct circuit protection, route power and signal cables away from heat and high-current wiring, and follow Icom specifications for safe distances and bearing alignment. Radar is a navigation aid and does not replace visual lookout, safe speed, current charts, or compliance with navigation rules.

Before Ordering

Confirm the required radome and display mounting locations, available 10.2V–42V DC supply, cable routing, AIS-source compatibility, heading/GPS input requirements, safe-distance compliance, and suitability of a dedicated radar display for the vessel.
