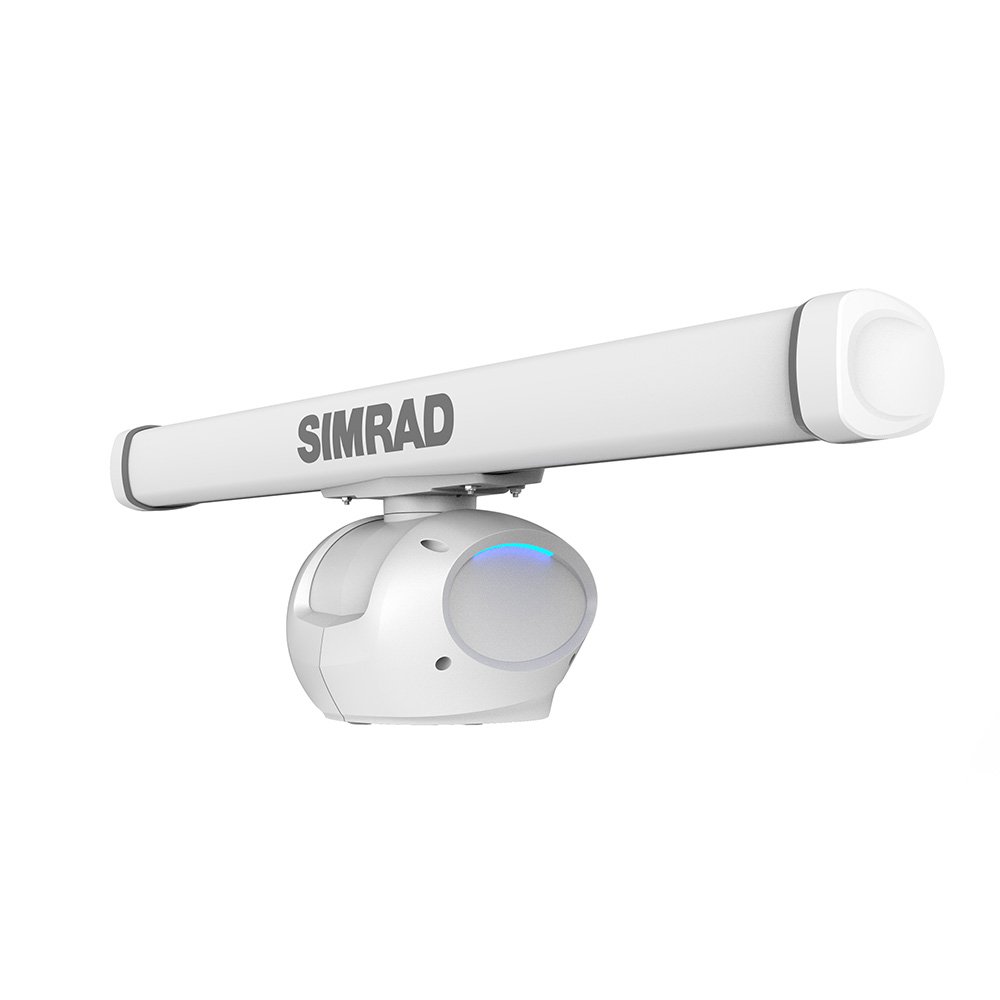

Simrad HALO 2004 Radar w/4 Open Array & 20M Cable

Simrad HALO 2004 4′ Open Array Radar 20M Cable Kit

The Simrad HALO 2004 4′ Open Array Radar 20M Cable Kit, a Simrad model, is engineered for reliable marine performance.

Antenna Size Class: 4-Foot Open Array Width.
Maximum Radar Range: 72 Nautical Miles (NM).
Beamwidth Horizontal: 1.8° Narrow Target Angular Discrimination.
Beamwidth Vertical: 22° Vertical Pulse Spread.
Waterproof Rating: IPX6 Extreme Weather Waterproof Enclosure Rating.

$4,926.00

Products are almost sold out

This product is about to run out

available only:

In Stock

Wholesale Price

Request for Quotation

Add to wishlist

Compare

SKU: SIM-H2004-4-20M Category: Marine Radars Brand: Simrad

SKU:

SIM-H2004-4-20M

Specification
Reviews (0)

Brand	Simrad
Full Model SKU/Code	000-16156-001 (HALO 2004 Complete Pack)
Country of Origin	Mexico
Radar Type	Solid-State Pulse Compression with VelocityTrack Doppler Technology
Antenna Form Factor	Open Array System (Includes Pedestal Base and 4-Foot Radiator Bar)
Antenna Size Class	4-Foot Open Array Width
Peak Power Output	50 Watts Solid-State Equivalent (Magnetron Performance Tier)
Maximum Radar Range	72 Nautical Miles (NM)
Minimum Radar Range	6 m / 20 ft Close-Range Extraction Edge
Beamwidth Horizontal	1.8° Narrow Target Angular Discrimination
Beamwidth Vertical	22° Vertical Pulse Spread
Rotation Speed	16 RPM to 48 RPM Smart Automated Rotation
Target Tracking Capacity	Advanced ARPA (Tracks up to 50 Targets Simultaneously), VelocityTrack color coding
Data Networking Protocols	High-Speed Marine Ethernet (RJ45 Node Link) via Included 20-Meter Cable
Operating Voltage	12 Volts DC / 24 Volts DC Adaptive Configuration Layer
Power Consumption	Active Transmitting: 45 Watts to 75 Watts (Peak) / Standby Mode: 15 Watts
Waterproof Rating	IPX6 Extreme Weather Waterproof Enclosure Rating
Wind Load Resistance	Up to 80 Knots Structural Integrity Threshold
Dry Weight	24.5 kg / 54.0 lbs (Combined Pedestal and 4-Foot Array Assembly)
Application	Premium open-helm center consoles, large multi-display sportfishers, and coastal cruising yachts seeking near-instantaneous target tracking and specialized bird mode capabilities (32-55 ft hulls)
