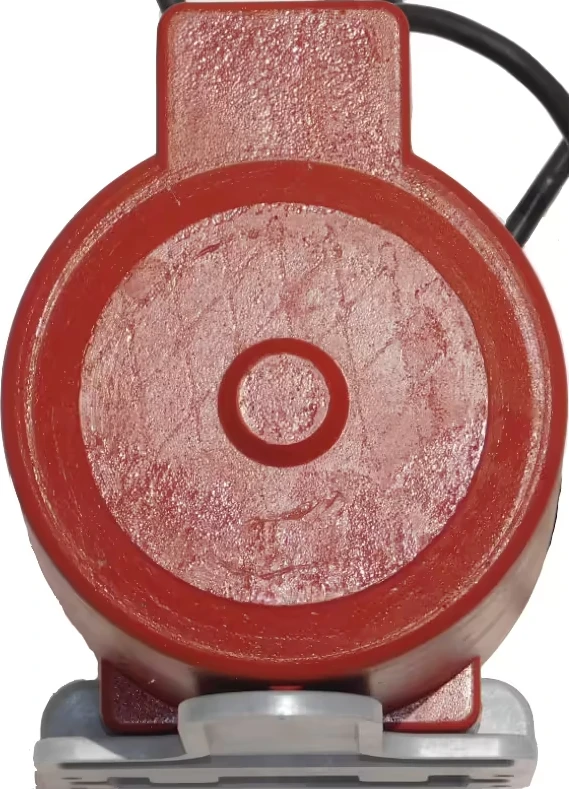

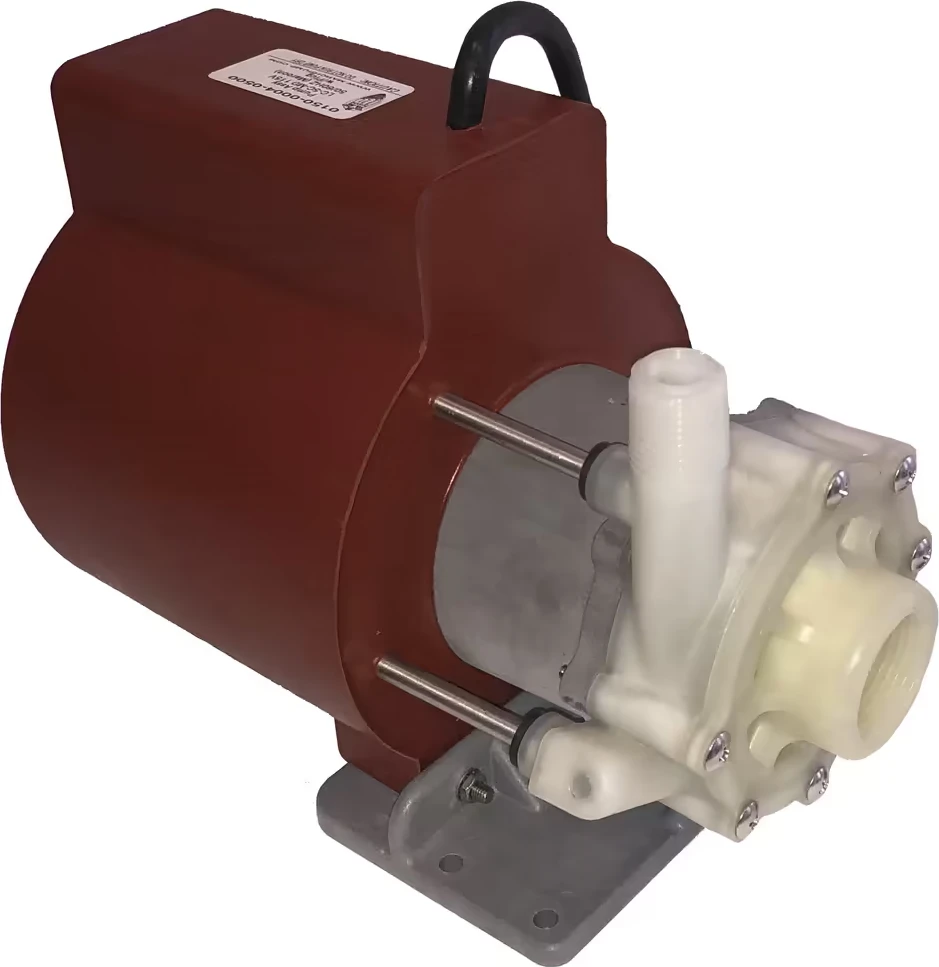

March Pumps LC-5M-MD / PML1000 (1000 GPH) 115V Submersible A/C Pump

Description

Circulate seawater for marine air-conditioning systems up to 50,000 BTU with the March Pumps LC-5M-MD PML1000 115V Submersible A/C Pump. This fully submersible seal-less magnetic-drive centrifugal pump provides a maximum rated flow of 1,000 GPH (16.6 GPM / 63.2 LPM), maximum head of 27 ft (8.2 m), and maximum pressure of 11.7 PSI.

March Pumps model LC-5M-MD 0150-0162-0100 uses a polypropylene body, ceramic magnet, and Buna-N O-ring. Its epoxy-encapsulated hermetically sealed submersible motor operates on 115V AC, 50/60 Hz single-phase power and has a listed current draw of 2.1A at 115V. The pump has a 1-inch FPT inlet and 1/2-inch MPT outlet.

Key Features

• Fully submersible seal-less magnetic-drive centrifugal pump.
• Specified for marine A/C seawater circulation systems up to 50,000 BTU.
• Maximum rated flow of 1,000 GPH, 16.6 GPM, or 63.2 LPM.
• Maximum rated head of 27 ft (8.2 m) and maximum pressure of 11.7 PSI.
• 115V AC, 50/60 Hz single-phase operation.
• Listed current draw of 2.1A at 115V.
• Epoxy-encapsulated hermetically sealed submersible motor.
• Polypropylene body, ceramic magnet, and Buna-N O-ring.
• 1-inch FPT inlet and 1/2-inch MPT outlet.
• Suitable for fully submersible or open-air flooded-suction operation.

Compatibility and Installation

The March Pumps LC-5M-MD PML1000 is specified for compatible marine A/C seawater circulation systems and can operate submerged or in an open-air flooded-suction configuration. Confirm compatible 115V AC 50/60 Hz single-phase power, 1-inch FPT inlet plumbing, 1/2-inch MPT outlet plumbing, A/C system flow needs, and available installation space. The maximum 1,000 GPH rating varies in installed service with total dynamic head, plumbing length and size, fittings, strainers, discharge restrictions, and electrical conditions.

For seawater systems, use the required marine intake, seacock, strainer, plumbing, and electrical-protection components specified for the vessel. Follow manufacturer instructions and qualified marine electrical and plumbing practices for submersion, wiring, bonding, mounting, plumbing, and commissioning.

Before Ordering

Verify March Pumps model LC-5M-MD 0150-0162-0100 PML1000, fully submersible seal-less magnetic-drive configuration, 115V AC 50/60 Hz single-phase requirement, 2.1A current draw, 1,000 GPH maximum flow, 27 ft maximum head, 11.7 PSI maximum pressure, polypropylene housing, ceramic magnet, Buna-N O-ring, epoxy-encapsulated motor, 1-inch FPT inlet, 1/2-inch MPT outlet, submerged or flooded-suction installation suitability, 200 x 140 x 160 mm dimensions, 9.5 lb dry weight, and 1-year limited manufacturer warranty before purchase.
